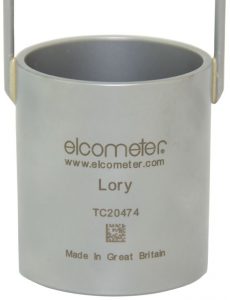

Elcometer 2215 Lory Viscosity Cup
(i) for information only
Product Description
The Elcometer 2215 Lory Viscosity Cup is a conventional cylindrical cup with a needle fixed into the bottom for quick measurements on-site or during production. The cup is first dipped into the product to be measured, then empties through the escape hole. Unlike other Viscosity cups, the flow time is measured as soon as the point of the needle appears. Specifications
Elcometer 2215 Lory Viscosity Cup – Specifications
Part Number Model Cup Number Range (cst)(i) K0002215M001 Elcometer 2215 1 50-1100 Data Sheet
Accessories
Elcometer 2215 Lory LCH Cup – Accessories
K0007300M201 Elcometer 7300 High precision stopwatch Measuring intervals: 1/100 second for 30 minutes and 1 second for 24 hours. Time calendar display, 12/24 hour mode.
KT002400N003 Elcometer 2400 Conversion Disc allowing viscosity (cSt) and flow times of different cups to be compared. Front: No.4 cups according to AFNOR, BS, NF, ASTM, DIN, Zahn 2 Back: No. 3-4-5-6 cups according to ISO and Zahn 3
G212—-1 Elcometer 212/1 Digital Pocket Thermometer (°C) with Needle/Liquid Probe G213—-2 Elcometer 213/2 Digital Thermometer (°C/°F) T1164441- Spirit Thermometer in °C T9996390- Elcometer 213/2 Liquid Probe
Instruction Manual
Elcometer 2215 Lory Viscosity Cup – Instruction Manual
Elcometer 2215 Lory Viscosity Cup Instruction Manual
