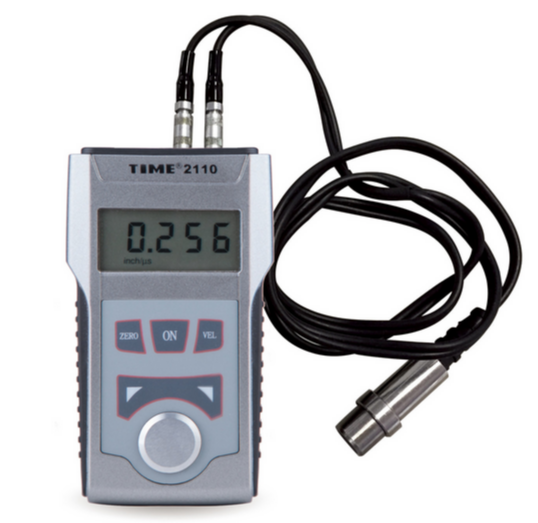

TT2110 Low Cost Ultrasonic Wall Thickness Material Thickness Gauge

TT2110 Low Cost Ultrasonic Wall Material Thickness Gauge

Product Description

Buy it online here

The TT2110 Low Cost Ultrasonic Wall Material Thickness Gauge is a hand held microprocessor controlled thickness gauge specifically designed for measuring the thickness of metallic and non-metallic materials e.g. aluminium, titanium, plastics, ceramics, glass and other good ultrasonic wave-conducting as long as the material has parallel top and bottom surfaces. With uses in many areas of industry, the TT2110 can perform precise measurements on various types of raw materials, components parts, and assembled machinery. It can also be used to monitor all types of pipes and pressure vessels for loss of thickness due to corrosion. The TT2110 is very easy to use, after a simple calibration to a known thickness or sound velocity, the gauge will give fast and accurate readings in millimetres. Sound velocities for 5 different materials can be pre-set and 10 thickness readings can be stored in the memory.

Specifications

TT2110 Low Cost Ultrasonic Wall Material Thickness Gauge – Specifications

Material : Metallic & Non-Metallic
Range (probe dependant) : 1.2 to 225.0 mm
Accuracy : +/-1% of Material Thickness + 0.1 mm
Resolution  : 0.1 up to 99.9 mm
Sound velocity range : 1000 to 9999 m/sec
Probe Tip diameter : 12 mm
Pipe Diameter Limits : 20 mm x 3 mm
Working Temp. : -5 to 40 deg C
Relative Humidity : < 90%
Surface Temperature : < 60 deg C
Non-linear Automatic Compensation
Indication of Coupling Status and low Voltage
Measuring units : mm
Frequency : 5 MHz
Display : 4 digit LCD
Memory : 10 readings
RS232 : no
Sound Velocity : 5 Preset Sound Velocities
Auto power off : yes
Power Supply : 2 x 1.5 AA Alkaline
Alarm limit setting : no
Battery Life : 250 hours per battery set
Dimensions : 126 x 68 x 23 mm
Weight : 170g

Data Sheet

TT2110 Low Cost Ultrasonic Wall Thickness / Material Thickness Gauge – Data Sheet

TT2110 Low Cost Ultrasonic Wall Thickness / Material Thickness Gauge – Data Sheet

Accessories

Optional Probes
Type of Probe Working  Measuring  Minimum  Characteristic
  Frequency Thickness  Size of
    Range Measuring Pipe
5PØ10 5MHz 1.2 – 225 Ø20 x 3 Straight Probe
5PØ10/90˚ 5MHz 1.2 – 225 Ø20 x 3 Right Angle Probe
7PØ6 7MHz 0.75 – 60 Ø15 x 2 For testing thin materials
SZ2.5P 2.5MHz 3 – 300 For testing thick materials with Rough Surfaces
ZW5P 5MHz 4 – 80 High Temp up to 300 deg C

Instruction Manual

TT2110 Low Cost Ultrasonic Wall Thickness / Material Thickness Gauge – Instruction Manual

TT2110 Low Cost Ultrasonic Wall Thickness / Material Thickness Gauge Instruction Manual
